Standard force output
Standard force weights and a standard force arm generate static torque across a 0.625 to 5,000 N·m output range.
CRITERO Torque Calibration Equipment
GJJ Series Standard Static Torque Calibration Device
Small & Medium Range Solution (0.625 - 5,000 N·m)
The GJJ series calibration device uses standard force weights and a standard force arm to generate standard static torque. Through center-axis output, it enables high-precision calibration of torque meters and torque sensors.
Product Overview
A standard static torque generation solution for small and medium range calibration
The GJJ Series Standard Static Torque Calibration Device uses weights, a force arm and balancing adjustment structure to establish stable standard torque output for laboratories, metrology organizations and production inspection environments.
High-precision calibration
System accuracy reaches 0.03%, meeting high-precision calibration requirements for torque meters, torque sensors and related metrology equipment.
System Composition
System Composition
Standard static torque generator
Includes a standard force arm, support, hanger and weights; used to generate standard static torque.
Platform
A large flat plate with one guide slot on top and two height-adjustable legs underneath.
Brake system
Provides counter-force and keeps the standard force arm level during adjustment and use.
Specifications
Specifications
Seven models cover standard static torque output from 0.625 N·m to 5,000 N·m.
| Item | Unit | GJJ-12.5 | GJJ-50 | GJJ-100 | GJJ-500 | GJJ-1000 | GJJ-2000 | GJJ-5000 |
|---|---|---|---|---|---|---|---|---|
| Output static torque | N·m | 0.625 - 12.5 | 2.5 - 50 | 5 - 100 | 25 - 500 | 50 - 1000 | 100 - 2000 | 250 - 5000 |
| Standard arm length | mm | 500 ± 0.25 | 500 ± 0.25 | 500 ± 0.25 | 1000 ± 0.5 | 1000 ± 0.5 | 1000 ± 0.5 | 1250 ± 0.5 |
| Plate size | mm | 1000 × 400 | 1000 × 400 | 1000 × 500 | 1200 × 600 | 1200 × 600 | 1400 × 600 | 1600 × 600 |
| System accuracy | % | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
| Sensitivity (no load) | g | 6 | 6 | 8 | 10 | 10 | 20 | 30 |
| Dead weight (approx.) | kg | ~200 | ~250 | ~300 | ~800 | ~1500 | ~1500 | ~1600 |
| Weights | N | 25 | 100 | 200 | 550 | 1100 | 2100 | 4250 |
Advantages
Key Advantages
High-precision calibration
Accuracy up to 0.03%, meeting high-standard metrology requirements.
Stable and reliable
Precision force arm and guide design ensure long-term stable operation.
Easy operation
Modular design enables easy installation, adjustment and maintenance.
Robust and durable
Quality materials and precision machining support long service life.
Covers multiple torque ranges, with higher-capacity models available.
Up to 20,000 N·mBrochure Preview

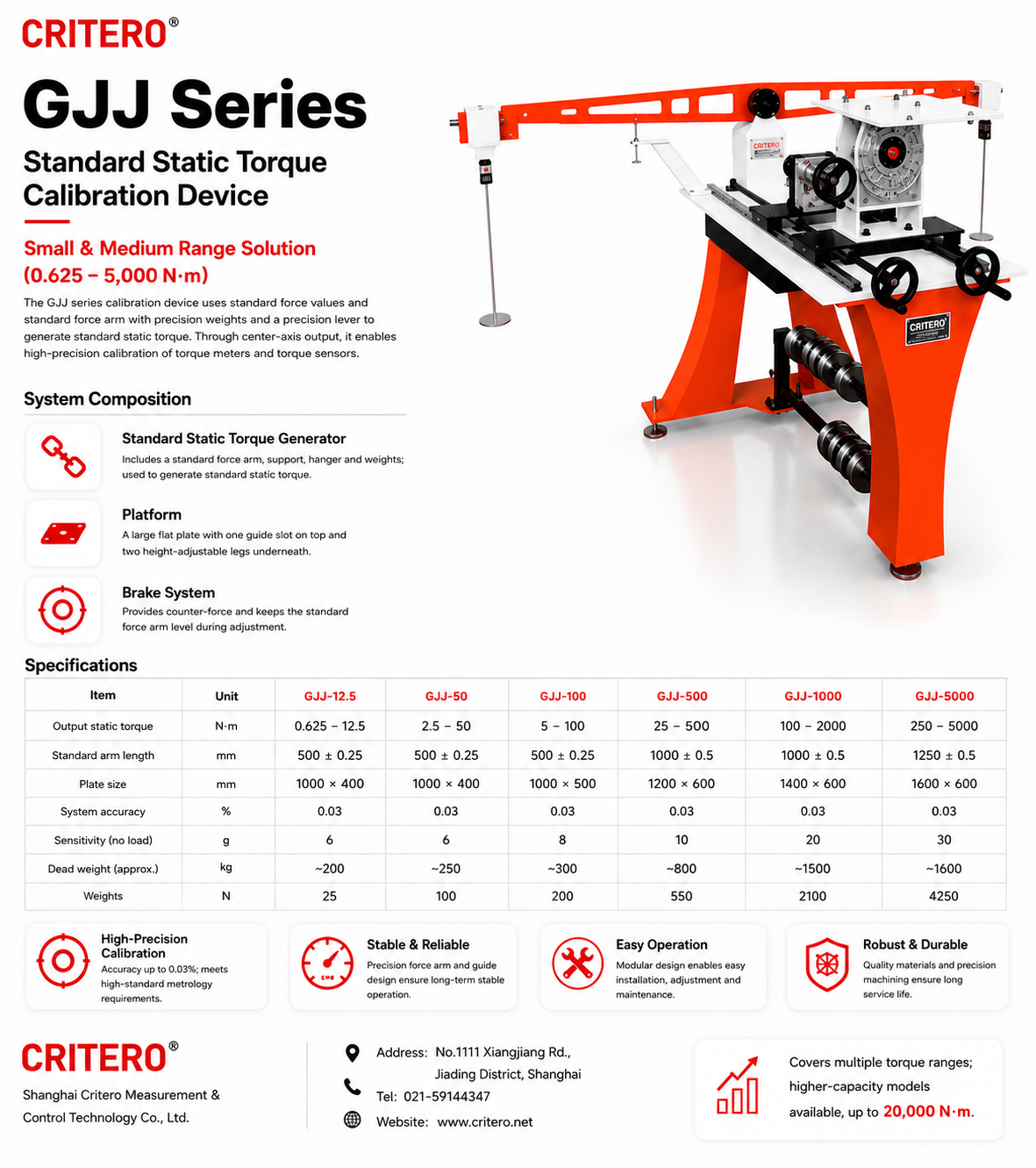

Brochure Preview
Contact
Get GJJ Series selection and calibration support
